Jointech JT709 Remote Control System Bluetooth GPS Smart Lock With 3000mAh Battery For Cargo Transportation

Minimum Order Quantity : 1 Unit Price : USD $109
Packaging Details : Cartons Delivery Time : 5-8 Days
Payment Terms : T/T, Western Union, L/C Supply Ability : 100000 Units per Month
Place of Origin: China Brand Name: Jointech
Certification: CE, ROHS, FCC Model Number: JT709

Detail Information

Feature: Small Size, Low Cost Product Name:: Tiny Portable Gps Smart Container Security Seal
Application:: Shipping Container Warranty:: 12 Months
Lock Rope:: 0.35~20m, Customized Alarms:: Rope-cut/ Low Battery
Function:: Seal Tracker Lock Material:: Engineering Plastic
Highlight:

Cargo Transportation GPS Smart Lock

,

Bluetooth GPS Smart Lock

,

3000mAh Battery GPS Smart Lock

Product Description

Jointech JT709 Bluetooth Electronic Security Lock

Product Description

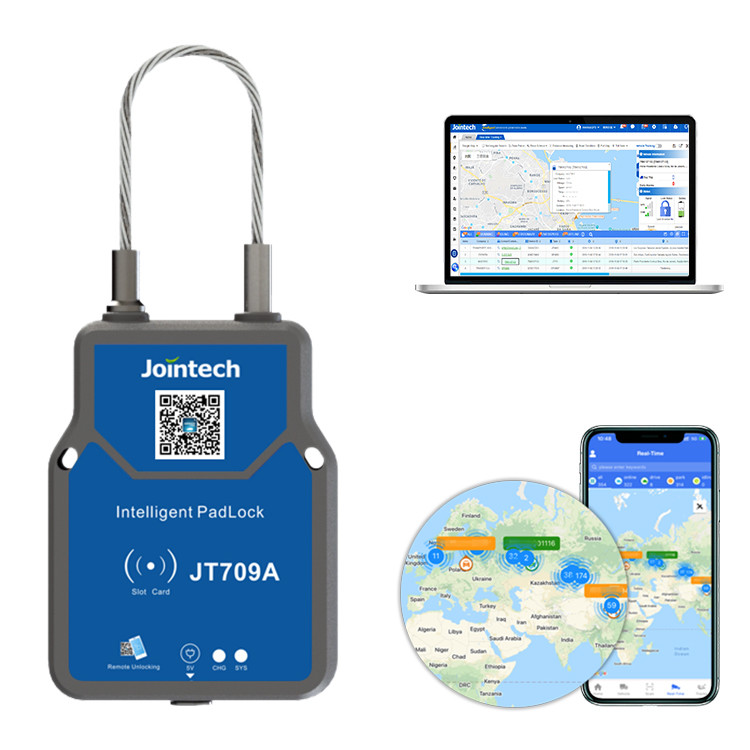

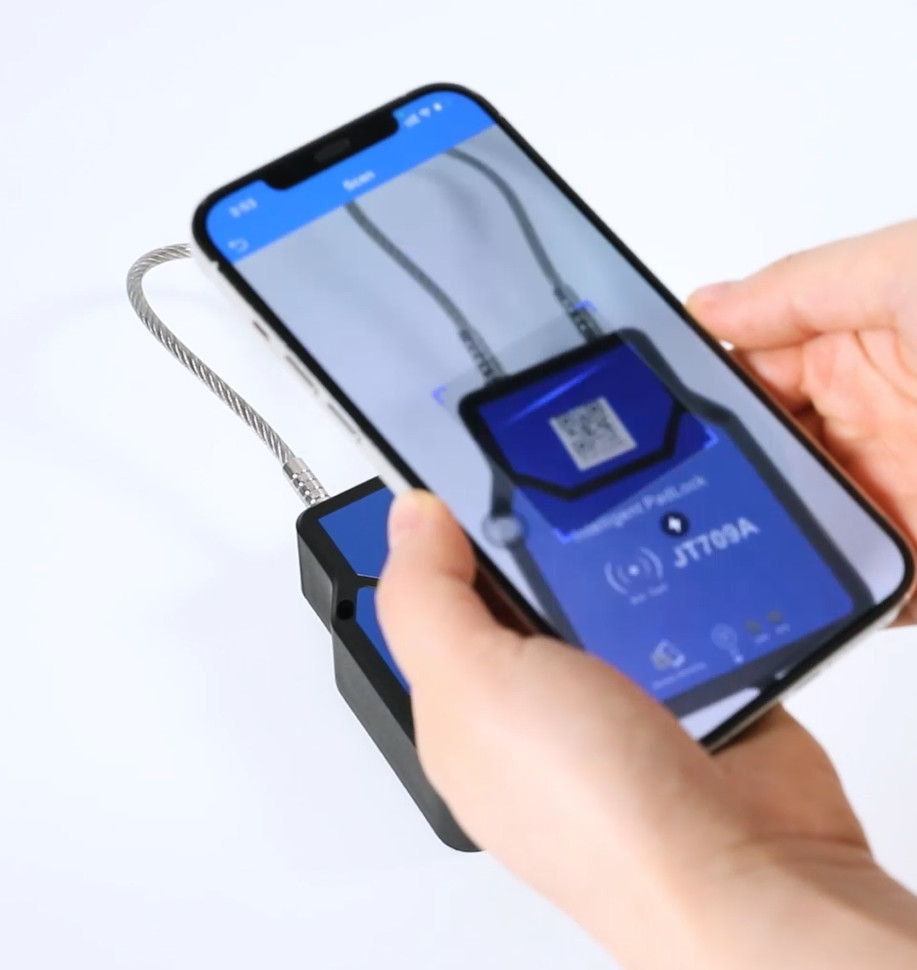

JT709A is a keyless padlock with industrial range that use Bluetooth 4.0 as a communication medium. User can connect the device through mobile phone APP by bluetooth, and unlock it by scanning QR code. It also support unlocking by authorized RFID card on site. After device is unlocked, device status will be uploaded to server platform.

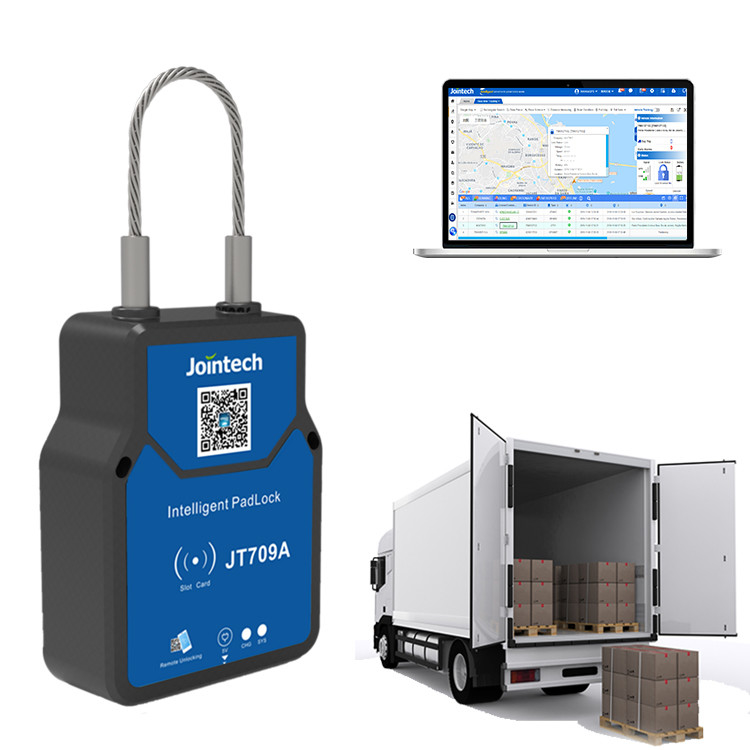

The other features are: device is inbuilt GPS, GSM module for global locating real time tracking. Help cargo owner control the cargo transportation in transportation,with the door status monitoring, give you adta of door unlocking, when, where, who unlock the device.



Application:
Device is suitable to the application, such as: logistic van truck, container tranportation, and muti door or outlet solution for ware house, tanker, pipeline.


Good investment. Make investment in your cargo transportation, will give you maximum controlling on cargo, and save your cost in cargo losing, management.

Your inquiry is welcome.


Main Features

  • Lock rope status detecting: Support locking , unlocking detecting, lock rope cutting detecting.
  • Pressing detecting: Support pressing button detecting. If device detect pressing button, it open lora connection, upload data, and receive command from platform.
  • Open cap detecting: Support cap open detecting, upload alert.
  • Rechargeable: Maximum charging current 1A

parameters Size 110mm*82mm*35mm
Lock rope size 300mm
weight 500g
Material of shell PC
Waterproof IP67
Working environment -40°C -- 75°C
Storage environment -40°C -- +85°C
Relative humidity 5%—95%



Working current

Average current<100mA

Working current in standby<60uA

Battery capacity 3000mAh,3.7V rechargeable battery
Data storage (flash 16K) 1536 data storage
Lora parameters Integrated with Lora module

Frequency: 433MHz

receiving sensitivity: -148dBm

Maximum transmitting power: 17dBm

Maximum uploading: 300KBps

Bluetooth parameters Bluetooth Integration

Support bluetooth 5.0

Receiving sensitivity: -97dBm

Maximum transmitting power:dBm

Maximum uploading: 2MBps








Mini Bluetooth Waterproof IP65 GPS Smart Lock CE Certification 0

Mini Bluetooth Waterproof IP65 GPS Smart Lock CE Certification 1

Mini Bluetooth Waterproof IP65 GPS Smart Lock CE Certification 2

Mini Bluetooth Waterproof IP65 GPS Smart Lock CE Certification 3

Mini Bluetooth Waterproof IP65 GPS Smart Lock CE Certification 4

Mini Bluetooth Waterproof IP65 GPS Smart Lock CE Certification 6





Jointech JT709 Remote Control System Bluetooth GPS Smart Lock With 3000mAh Battery For Cargo Transportation 6

Jointech JT709 Remote Control System Bluetooth GPS Smart Lock With 3000mAh Battery For Cargo Transportation 7

Jointech JT709 Remote Control System Bluetooth GPS Smart Lock With 3000mAh Battery For Cargo Transportation 8

Jointech JT709 Remote Control System Bluetooth GPS Smart Lock With 3000mAh Battery For Cargo Transportation 9

Exhibition

Jointech JT709 Remote Control System Bluetooth GPS Smart Lock With 3000mAh Battery For Cargo Transportation 10

Jointech JT709 Remote Control System Bluetooth GPS Smart Lock With 3000mAh Battery For Cargo Transportation 11



Jointech JT709 Remote Control System Bluetooth GPS Smart Lock With 3000mAh Battery For Cargo Transportation 12

Jointech JT709 Remote Control System Bluetooth GPS Smart Lock With 3000mAh Battery For Cargo Transportation 13

Shipping & Packaging



Jointech JT709 Remote Control System Bluetooth GPS Smart Lock With 3000mAh Battery For Cargo Transportation 14

Our clients & Partners

Jointech JT709 Remote Control System Bluetooth GPS Smart Lock With 3000mAh Battery For Cargo Transportation 15

Jointech JT709 Remote Control System Bluetooth GPS Smart Lock With 3000mAh Battery For Cargo Transportation 16

Jointech JT709 Remote Control System Bluetooth GPS Smart Lock With 3000mAh Battery For Cargo Transportation 17

Jointech JT709 Remote Control System Bluetooth GPS Smart Lock With 3000mAh Battery For Cargo Transportation 18

Q1: Do you have your own factory?
A1: Yes, we are a manufacturer with 18 years of experience in providing mobile asset monitoring and management solutions.

Q2:Why choose us?
A2: Our company is a leader in the field of mobile asset monitoring in China, our products and services have covered more than 80 countries and regions around the world and enjoy high brand awareness and reputation in America, Africa, Asia and Europe.

Q3: Do you have your own tracking platform?
A3: Yes, we can provide not just web based tracking software, but also IOS/Android APP.

Q4: Do you provide customized hardware and software?
A4: Yes, we can provide not just customized hardware, but also software functionalities.

Q5: What is the MOQ?
A5: MOQ will be 1-2pcs.

Q6: What's your delivery time?
A6: For samples, 2-4 days, bulk order, 7-15 days generally.

Q7: How can I get your price list?
A7: Please contact us, we will email you the quotation.

Q8: Can we have our logo or company name to be printed on your products or the package?
A8: Yes, of course.

Q9: What is the Warranty period of your products?
A:9: 12 months.

Q10: If the products have quality problems, what after-sale service I can get?
A10: Online chat service, remote technology support and platform service.
Contact us ASAP if any problem with the products.

Lock rope status detecting Support locking , unlocking detecting, lock rope cutting detecting.
3 Pressing detecting Support pressing button detecting. If device detect pressing button, it open lora connection, upload data, and receive command from platform.
4 Open cap detecting Support cap open detecting, upload alert.
5 Rechargeable Maximum charging current 1A
