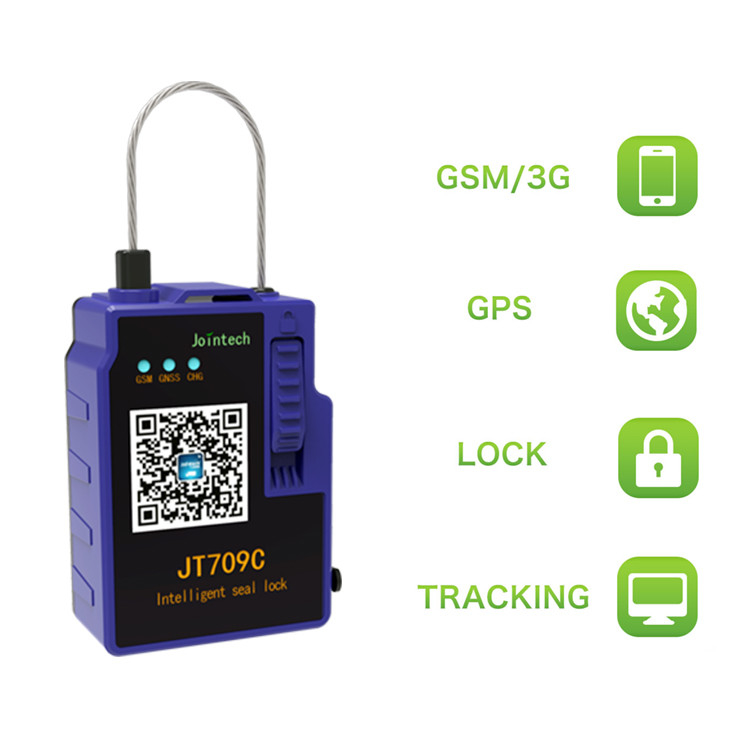

Jointech JT709C Intelligent Electronic Lock Real-Time Tracking & Remote Unlocking Smart Truck Tracking E-lock

Minimum Order Quantity : 1 Unit Price : USD 103-116 / Unit
Packaging Details : Cartons Delivery Time : 5-8 Days
Payment Terms : T/T, Western Union, L/C Supply Ability : 100000 Units per Month
Place of Origin: China Brand Name: Jointech
Certification: CE, ROHS, FCC Model Number: JT709C

Detail Information

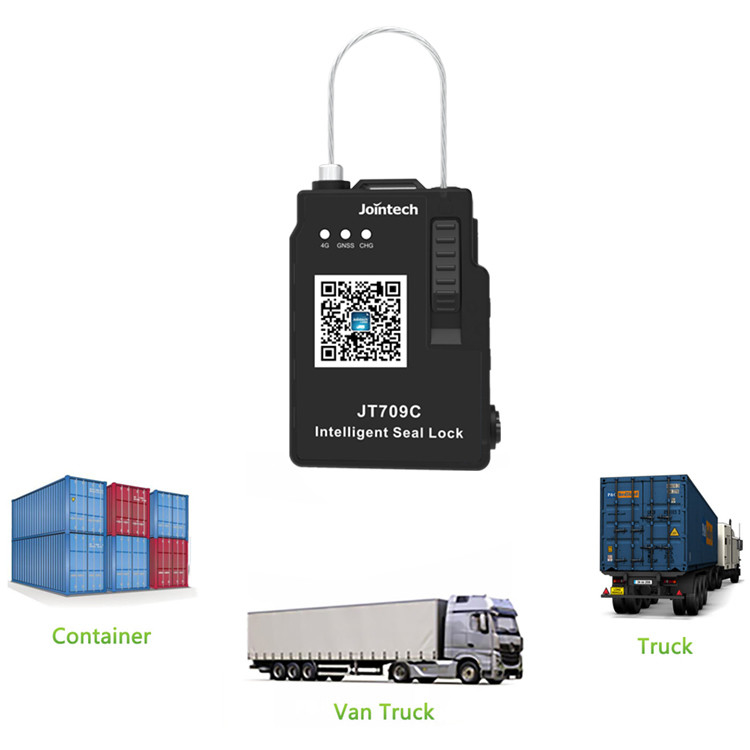

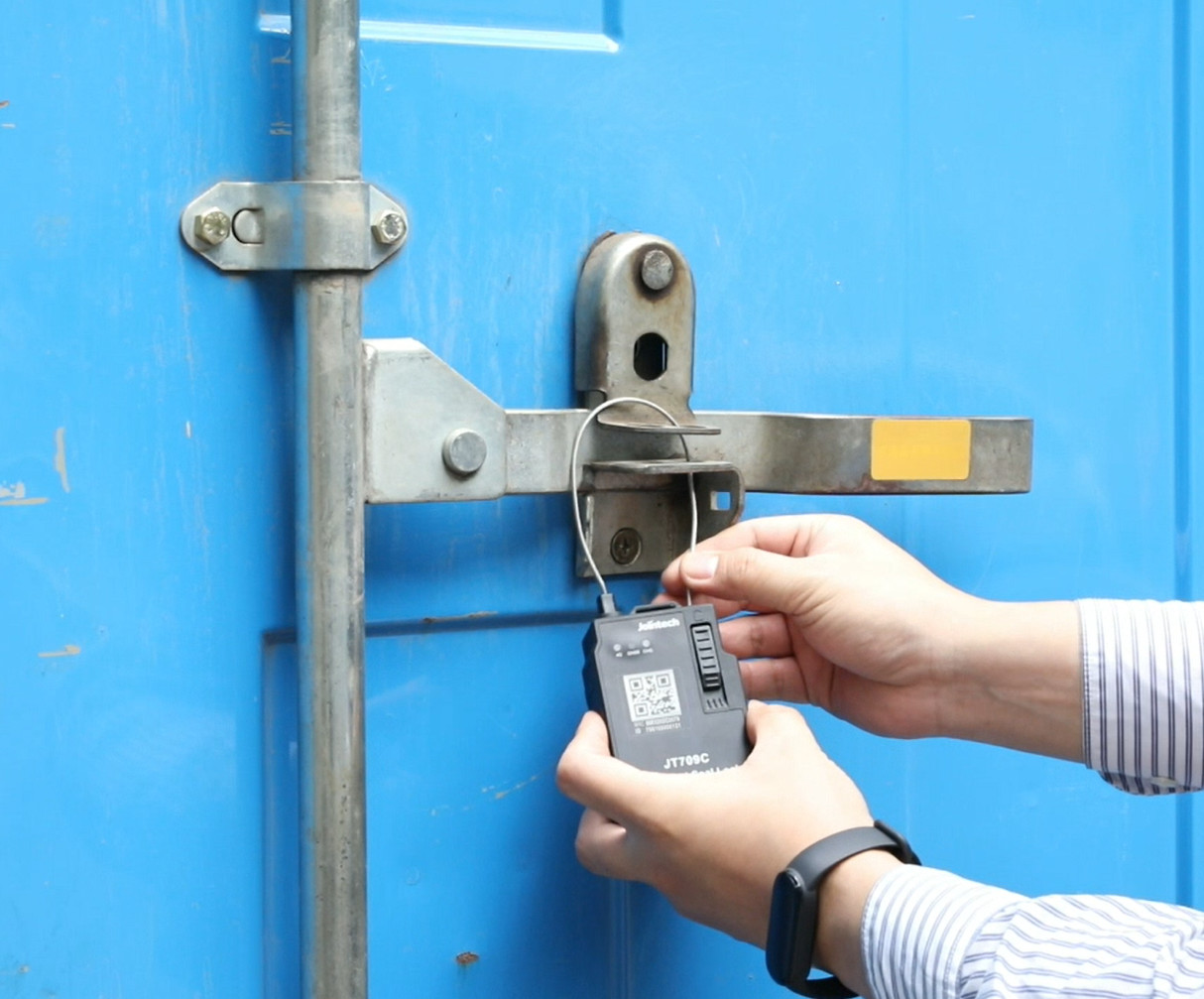

Feature: Real-time GPS Positioning, GPRS Remote Tracking Application:: Monitoring Of Containers, Vans, Warehouse Doors
Positioning Mode: Real Time Position Tracking (GPS+LBS)+Flash Memory For Blind Spot Monitoring Mode: Real-time Monitoring Of Location, Door Opening
Unlocking Method: Remote Multiple Unlock/Lock (BLE, GPRS, SMS) Support: Alerts For Cargo Tampering, Anti-theft Design
Network: 4G Battery: Rechargeable Battery, 3 Month Battery
Alarms: Rope Cut Alarm, Illegal Incident Alarm Installation: Easy And Quick
Bluetooth: Unlocking, Configuratio
Highlight:

Remote Unlocking E-lock

,

Real-Time Tracking E-lock

,

Smart Truck Tracking E-lock

Product Description

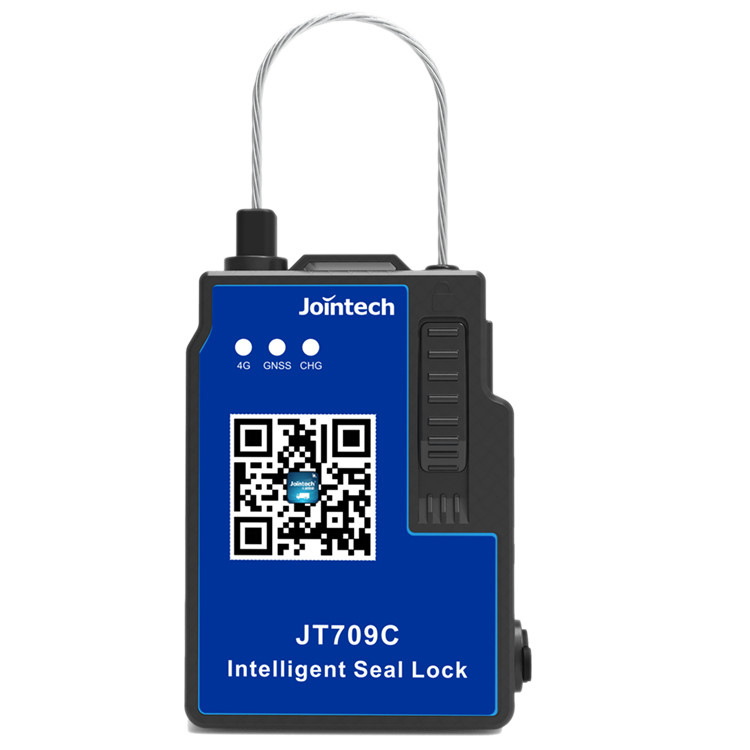

Jointech JT709C Intelligent Bluetooth 4G GPS Tracking Electronic Lock for Cargo Transportation

Product Description

JT709C-intelligent electronic padlock is an electronic lock product developed based on the Jointech existed hardware model JT707A/JT709A series. It is a integration of business needs from customers. Device is with the features convenient use, low power consumption, long standby time, and the lock rope can be replaced / reused. It can be unlocked by Bluetooth, short message, supervision platform/APP, scan code, etc.


Your inquiry is welcome.

Main Feature:
1. Bluetooth unsealing
2.APP authorization unlocking
3.More than 50,000 unlock times
4.Rechargeable 2600mAh battery
5.More than 1000 unlock records
6.Protection class IP67

Product size 88 *62*30(mm)
Lock weight 200g
Material PA66+GF plastic
Seal cable diameter seal cable diameter 1.8mm
Material of seal cable 304 stainless
Pulling force >60kg
Data communication Default 4G CAT1 uploading, optional 2G GPRS network.
Communication mode support TCP, SMS(message)
SIM card Micro-SIM card
Wireless communication by Bluetooth Support Bluetooth 4.2 and upper, the valid distance >10 (in theory)
Locating Beidou+ GPS, LBS locating.
Vibration sensor Inbuilt 3G axis G sensor
Working current Working current average<40mA (data uploaded interval 60s)
Current in standby In RTC mode, the average current: < 80uA
Battery Rechargeable lithium battery 3.7V/2600mAh

Protection grade

Working temperature

Storage temperature

IP67 Protection grade
-10℃--60℃ Working temperature
-40℃--60℃ Storage temperature
Relative humidity 5%—95%

Jointech JT709C Smart Container Seal Tracking For Cargo Security And GPS Navigation Seal Lock 0

Jointech JT709C Smart Container Seal Tracking For Cargo Security And GPS Navigation Seal Lock 9

Jointech JT709C 4G Mini Thin Lock Cable GPS Padlock Truck Container Installation Electronic 0

Jointech JT709C Smart Container Seal Tracking For Cargo Security And GPS Navigation Seal Lock 5

Jointech JT709C Smart Container Seal Tracking For Cargo Security And GPS Navigation Seal Lock 7

Jointech JT709C Smart Container Seal Tracking For Cargo Security And GPS Navigation Seal Lock 6

4G Bluetooth Electronic Seal Tracker Smart GPS Tracking Jointech JT709C 0



4G Bluetooth Electronic Seal Tracker Smart GPS Tracking Jointech JT709C 1

4G Bluetooth Electronic Seal Tracker Smart GPS Tracking Jointech JT709C 2



4G Bluetooth Electronic Seal Tracker Smart GPS Tracking Jointech JT709C 4

4G Bluetooth Electronic Seal Tracker Smart GPS Tracking Jointech JT709C 5



Jointech JT709C Intelligent Electronic Lock Real-Time Tracking & Remote Unlocking Smart Truck Tracking E-lock 11

Jointech JT709C Intelligent Electronic Lock Real-Time Tracking & Remote Unlocking Smart Truck Tracking E-lock 12

Jointech JT709C Intelligent Electronic Lock Real-Time Tracking & Remote Unlocking Smart Truck Tracking E-lock 13

Jointech JT709C Intelligent Electronic Lock Real-Time Tracking & Remote Unlocking Smart Truck Tracking E-lock 14

Exhibition

Jointech JT709C Intelligent Electronic Lock Real-Time Tracking & Remote Unlocking Smart Truck Tracking E-lock 15

Jointech JT709C Intelligent Electronic Lock Real-Time Tracking & Remote Unlocking Smart Truck Tracking E-lock 16



Jointech JT709C Intelligent Electronic Lock Real-Time Tracking & Remote Unlocking Smart Truck Tracking E-lock 17

Jointech JT709C Intelligent Electronic Lock Real-Time Tracking & Remote Unlocking Smart Truck Tracking E-lock 18

Shipping & Packaging



Jointech JT709C Intelligent Electronic Lock Real-Time Tracking & Remote Unlocking Smart Truck Tracking E-lock 19

Our clients & Partners

Jointech JT709C Intelligent Electronic Lock Real-Time Tracking & Remote Unlocking Smart Truck Tracking E-lock 20

Jointech JT709C Intelligent Electronic Lock Real-Time Tracking & Remote Unlocking Smart Truck Tracking E-lock 21

Jointech JT709C Intelligent Electronic Lock Real-Time Tracking & Remote Unlocking Smart Truck Tracking E-lock 22

Jointech JT709C Intelligent Electronic Lock Real-Time Tracking & Remote Unlocking Smart Truck Tracking E-lock 23

Q1: Do you have your own factory?
A1: Yes, we are a manufacturer with 18 years of experience in providing mobile asset monitoring and management solutions.

Q2:Why choose us?
A2: Our company is a leader in the field of mobile asset monitoring in China, our products and services have covered more than 80 countries and regions around the world and enjoy high brand awareness and reputation in America, Africa, Asia and Europe.

Q3: Do you have your own tracking platform?
A3: Yes, we can provide not just web based tracking software, but also IOS/Android APP.

Q4: Do you provide customized hardware and software?
A4: Yes, we can provide not just customized hardware, but also software functionalities.

Q5: What is the MOQ?
A5: MOQ will be 1-2pcs.

Q6: What's your delivery time?
A6: For samples, 2-4 days, bulk order, 7-15 days generally.

Q7: How can I get your price list?
A7: Please contact us, we will email you the quotation.

Q8: Can we have our logo or company name to be printed on your products or the package?
A8: Yes, of course.

Q9: What is the Warranty period of your products?
A:9: 12 months.

Q10: If the products have quality problems, what after-sale service I can get?
A10: Online chat service, remote technology support and platform service.
Contact us ASAP if any problem with the products.
